Percutaneous exclusion of post-transcatheter aortic valve replacement (TAVR) induced aortic pseudoaneurysm using an Amplatzer Vascular Plug 2 (AVP2)
Free
  1. Sunil P Singh1,
  2. Harsh Agrawal1,
  3. Charles M Eichler2 and
  4. Vaikom S Mahadevan1
  1. 1 Department of Internal Medicine, Division of Cardiovascular Medicine, UCSF, San Francisco, California, USA
  2. 2 Department of Vascular Surgery, UCSF, San Francisco, California, USA
  1. Correspondence to Dr Harsh Agrawal, harshagrawal{at}hotmail.com

https://doi.org/10.1136/bcr-2018-228442

Statistics from Altmetric.com

    Request Permissions

    If you wish to reuse any or all of this article please use the link below which will take you to the Copyright Clearance Center’s RightsLink service. You will be able to get a quick price and instant permission to reuse the content in many different ways.

    Description

    Here we present a novel repair strategy of a rare aortic complication following transcatheter aortic valve repair (TAVR). A 73-year-old man with a history of mitral valve replacement secondary to endocarditis underwent a TAVR for severe aortic insufficiency at an outside hospital (Medtronic Evolut R 34 mm Valve). After a routine follow-up, echocardiogram showing abnormal colour flow in the ascending aorta, a CT scan revealed TAVR leaflet thrombosis (requiring anticoagulation) and a 3.5×3 cm pseudoaneurysmal sac with two communications into the ascending aorta just distal to the TAVR scaffold (figure 1: aortography—top, CT scan—bottom; figure 4: top—pre-procedure echo images with red arrow pointing towards the pseudoaneurysm).

    Figure 1
    Figure 1

    Top panel: pre-procedure aortography demonstrating pseudoaneurysm in communication with ascending aorta just distal to the transcatheter aortic valve repair scaffold (arrowhead). Bottom panel: pre-procedure CT scan demonstrating pseudoaneurysm (arrow) with two necks (arrowheads) communicating with ascending aorta.

    Heart team evaluation of the case determined that thoracic endovascular aortic repair was not possible given the proximity of the pseudoaneurysm to the TAVR structure. A 6-French JR4 guide was used to engage the inferior neck of the pseudoaneurysm sac (figure 2) through the TAVR scaffold. An initial attempt at percutaneous coiling of the sac with a 20 mm Nestor vascular coil (Cook Medical, Bloomington, IN) failed to fill the cavity completely and was removed. Definitive repair of the sac was achieved using a 22 mm Amplatzer Vascular Plug 2 (St. Jude Medical, Saint Paul, MN). One month and 6 months post-procedure CT and echocardiogram showed a fully thrombosed and sealed off pseudoaneurysm sac with no residual communication with the ascending aorta (figure 3: aortography—top, CT scan—bottom; figure 4: bottom—post-procedure echo at 1 month with blue arrow pointing at the sealed PSA).

    Figure 2
    Figure 2

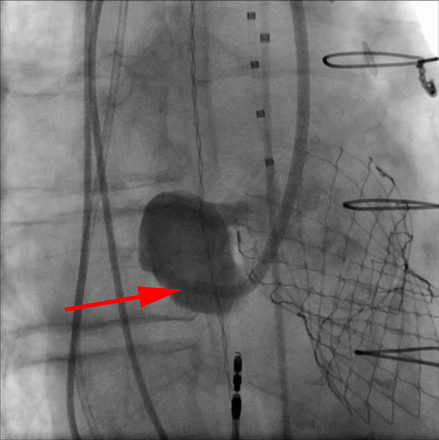

    Initial engagement and opacification of pseudoaneurysm sac with a 6-French JR4 guide catheter (arrow).

    Figure 3
    Figure 3

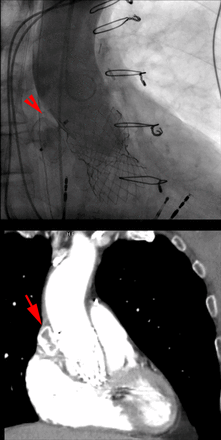

    Top panel: aortography demonstrating Amplatzer Vascular Plug 2 (AVP2) device in place after release (arrowhead). Bottom panel: one-month post-procedure CT scan demonstrating AVP2 device in place with fully sealed pseudoaneurysm sac (arrow).

    Figure 4
    Figure 4

    Top panel: pre-procedure echocardiogram in short axis, parasternal long axis and three-chamber view demonstrating the pseudoaneurysm sac. Bottom panel: post-procedure echocardiogram showing complete exclusion of the pseudoaneurysm sac.

    Learning points

    • To our knowledge, this is the first reported case of transcatheter aortic valve repair-induced ascending aortic pseudoaneurysm.

    • Our novel approach for percutaneous repair using an Amplatzer Vascular Plug 2 device appears to be both safe and efficacious.

    Footnotes

    • Contributors SPS, HA, CME and VSM: planning, conduct, reporting, conception and design, acquisition of data or analysis and interpretation of data.

    • Funding The authors have not declared a specific grant for this research from any funding agency in the public, commercial or not-for-profit sectors.

    • Competing interests None declared.

    • Provenance and peer review Not commissioned; externally peer reviewed.

    • Patient consent for publication Obtained.
